Custom Gear Ring - Precision Engineering for Your Unique Applications

When traditional solutions are insufficient for your industrial equipment, our Custom Gear Ring manufacturing knowledge offers the best option. At Luoyang Heng Guan Bearing Technology Co., Ltd., we understand that every application presents unique challenges. As a result, we are skilled at creating exquisitely designed gear rings that are tailored to your unique requirements. We transform your ideas into high-performing parts that increase the overall dependability and competitiveness of your equipment thanks to our more than 20 years of experience in precision manufacturing.

Why Choose Our Custom Ring Gear Solutions?

Unlimited Size Capabilities

To realize your vision, we transcend conventional size constraints. We can produce a wide range of helical gear products, from large φ8000mm+ heavy-duty units to small φ200mm precision gear rings. We have the knowledge and tools to deliver industrial giants or micro-precision components.

Our facility manages full module coverage, ranging from M60+ heavy-load scenarios to M1 fine pitch applications. All of the parameters, such as pressure angle, helix angle, and tooth width, can be altered to meet your technical requirements.

Advanced Tooth Profile Engineering

Your Custom Gear Ring isn't limited to standard involute profiles. We offer specialized tooth geometries including circular arc and cycloid designs. Our engineering team provides professional modification services to optimize meshing performance for your specific application.

Special structural combinations like segmented assemblies and insert-type configurations are manufactured with precision assembly techniques. This flexibility ensures your gear wheel integrates seamlessly into your existing systems.

Premium Materials and Heat Treatment

High-grade steels such as 45#, 42CrMo, 20CrMnTi, 40Cr, and 34CrNiMo6 are among the materials we work with. Upon request, custom material specifications can be created to precisely match your performance needs.

Our tailored Custom Gear Ring heat treatment procedures include tempering, induction hardening, nitriding, and carburizing. Every step is meticulously managed to provide the ideal hardness and endurance while reducing deformation.

Surface Treatment Excellence

In addition to basic production, we provide thorough surface treatments. Dacromet coating, phosphating, and nickel plating are examples of anti-corrosion methods. We use Teflon or molybdenum disulfide coatings for situations that require less friction.

Technical Specifications

Diverse Industrial Applications

Your Custom Gear Ring finds applications across numerous industries:

Heavy Machinery: Ball mills, rotary kilns, crushers, and large rolling mills benefit from our robust gear ring solutions.

Construction Equipment: Shield tunneling machines, large excavators, and crawler cranes rely on our precision-engineered components.

Material Handling: Stackers, reclaimers, and large mixing equipment operate smoothly with our custom solutions.

Specialized Industries: Medical equipment, rotary dryers, and industrial presses use our precision gear rings for critical applications.

Quality Assurance You Can Trust

Consistent excellence is guaranteed by our ISO9001-certified quality management system. Prior to shipping, each Custom Gear Ring is subjected to a thorough pre-production sample and final inspection. Performance standards are validated by our full suite of in-house testing equipment.

Our reputation for excellence speaks for itself, as our products are shipped to more than 50 nations, including the USA, Germany, UK, Italy, and Australia. Our thirty seasoned salespeople offer multilingual assistance in both Chinese and English.

Customized services

For customized gears, rings, we offer a complete and highly flexible solution. This goes beyond simple dimensional changes and encompasses comprehensive customization from materials and design to heat treatment and finishing.

Core Design:

Geometric Parameters: Module, number of teeth, pressure angle, helix angle, modification coefficient, etc.

Structures: Cylindrical gears, bevel gears, worm gears, rings, gear shafts, spline shafts, flange shafts, etc.

Heat Treatment Processes: Case hardening (high surface hardness), induction hardening (deep hardening), quenching and tempering (high core strength), nitriding (low distortion)

Precision Grade: Up to DIN Class 6 or higher, meeting diverse transmission smoothness and noise requirements

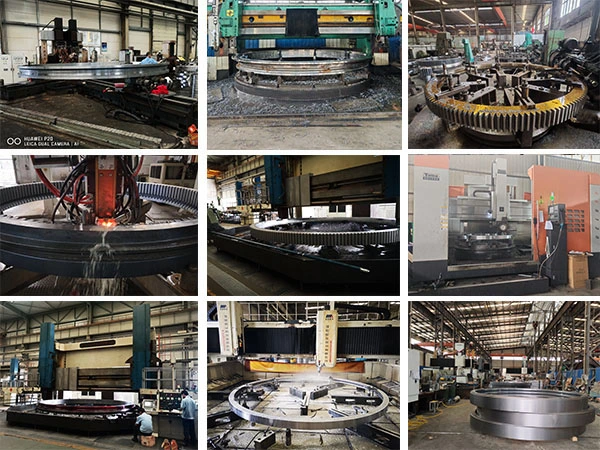

Process Assurance: Utilizes precision machining processes such as CNC hobbing, grinding, and milling

Special Applications and Services: Customized for extreme operating conditions such as high speed, heavy load, corrosion resistance, and high and low temperature conditions

Full-Process Service: Supports manufacturing based on drawings/samples, mapping and optimization of existing parts, and technical consulting

Appearance Customization:

Surface treatments and coatings, such as galvanizing, chrome plating, and nickel plating, primarily provide rust and corrosion resistance to adapt to various operating environments. Specialty coatings provide additional surface protection to withstand harsh operating conditions such as humidity and salt spray.

Clear Application Scenario: During your consultation, please be sure to specify the industry your equipment will be used in (e.g., construction machinery, port vessels, wind power generation, etc.) and the operating environment (e.g., temperature, presence of corrosive media, etc.). This will help engineers recommend the most suitable materials and treatment processes.

Engineering Support Throughout Your Project

From initial concept to final delivery, our engineering team provides comprehensive support. We review your drawings, analyze application requirements, and recommend optimal solutions. Our flexible manufacturing system adapts to your timeline and specification changes.

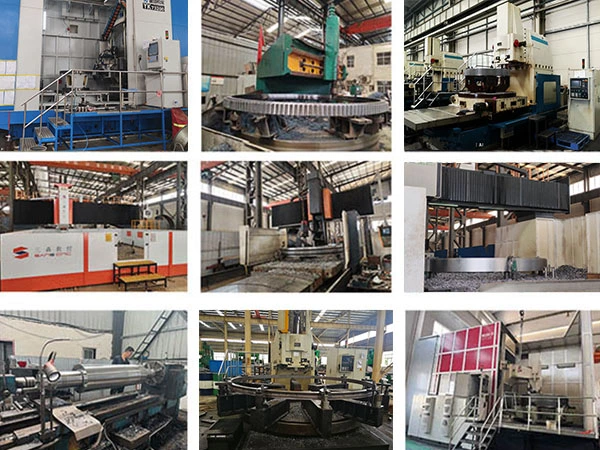

Our complete production capabilities include design, forging, casting, machining, and assembly under one roof. This integration ensures quality control and reduces lead times for your projects.

FAQ

1. Q: Are you trading company or manufacturer?

A: We are professional slewing bearing manufacturer with 20 years' experience.

2. Q: How long is your delivery time?

A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not instock, Also it is according to quantity.

3. Q: Do you provide samples?

A: Yes, we could offer the sample.

4. Q: What is your terms of payment?

A: Payment<=1000UsD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.

5. Q: Can you provide special customization according to the working conditions?

A: Sure, we can desian and produce the slewing bearings for different working conditions.

6. Q: How about your guarantee?

A: We provide lifelong after-sales technical service.

7. Q: Do you provide on-site surveying services?

A: Yes, we have professional engineering team to do on-site survey.

Start Your Custom Solution Today

Ready to discuss your Custom Gear Ring requirements? Our technical team is standing by to review your specifications and provide professional recommendations. Contact us at mia@hgb-bearing.com to begin your custom solution journey.

With Luoyang Heng Guan Bearing Technology Co., Ltd, you're choosing a partner committed to integrity, efficiency, and win-win cooperation. Let us help you create the perfect gear ring solution for your unique application needs.
