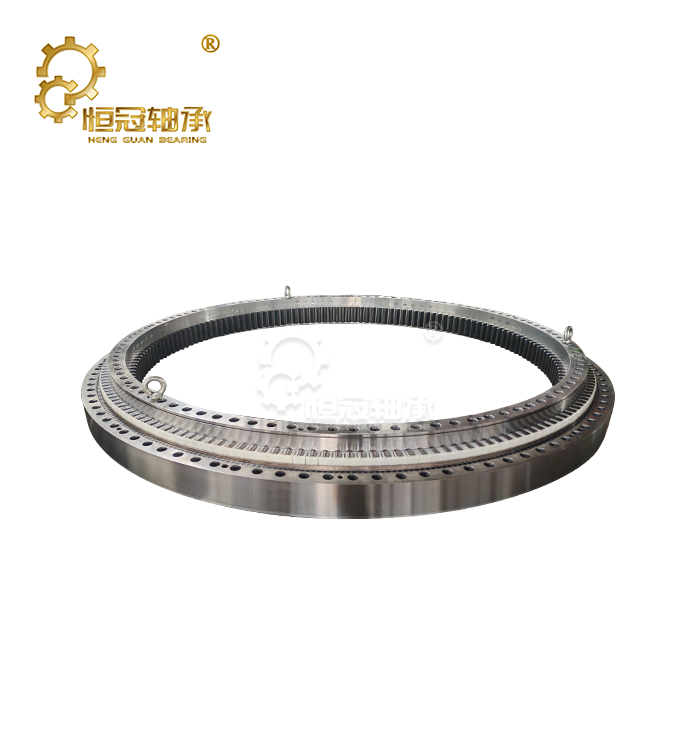

Actuator Ring Gear
2. Product Structure: The gear tooth profile is precisely calculated and optimized to ensure smooth and efficient meshing with the mating gear, resulting in low transmission noise and minimal impact.
3. Dimensions: Product dimensions are 347mm × 307mm × 102mm.
4. Strong Customization Capabilities: We offer a wide range of custom services, with ring gear diameters ranging from 50mm to 10,000mm. We can also provide custom sizes, tooth profiles, and mounting interfaces based on your specific design.
5. Material: Select the material you require.
5. Applications:
Heavy-duty dump trucks, concrete mixer trucks, and truck-mounted cranes
High-Performance Actuator Ring Gear for Heavy-Duty Applications
When you need a reliable transmission solution for your heavy-duty truck systems, our precision-engineered Actuator Ring Gear delivers exceptional performance you can trust. Manufactured by Luoyang Heng Guan Bearing Technology Co.,Ltd, this high-precision ring gear meets the demanding requirements of commercial vehicle actuation systems. With over 30 years of industry expertise, we understand the critical role that quality components play in your operations. Our team of skilled engineers has designed this gear to exceed industry standards while providing the durability and reliability your applications demand.
 |
 |
Product Features and Specifications
Our ring gear incorporates advanced engineering solutions that set it apart from standard alternatives. The gear features precision-calculated tooth profiles that ensure smooth meshing with mating components. This design minimizes transmission noise and reduces mechanical impact during operation.
Key Technical Specifications:
- Dimensions: 347mm × 307mm × 102mm
- Compliance: DIN 867 gear precision standards
- Surface Treatment: Advanced nitriding process
- Load Capacity: Optimized for heavy-duty applications
- Precision Grades: Available in P0, P6, P5, and P4
The surface nitriding process enhances wear resistance and extends service life significantly. This treatment creates a hardened surface layer that maintains core toughness while providing excellent protection against wear and corrosion.
Applications and Industries
Your Actuator Ring Gear finds extensive use across multiple heavy-duty vehicle applications. The robust design makes it ideal for demanding environments where reliability is paramount.
Primary Applications:
- Heavy-duty dump trucks
- Concrete mixer trucks
- Truck-mounted cranes
- Construction equipment
- Industrial machinery
These applications benefit from the gear's ability to handle high torque loads while maintaining smooth operation. The precision manufacturing ensures consistent performance across temperature variations and challenging operating conditions.
Customization and Engineering Support
We understand that standard solutions don't always meet your specific requirements. Our comprehensive customization capabilities allow you to specify exact dimensions and configurations for your unique applications.
Customization Options:
- Ring gear diameters from 50mm to 10,000mm
- Custom tooth profiles and specifications
- Specialized mounting interfaces
- Material selection based on application needs
- Modified dimensions for specific installations
Our engineering team works closely with you to develop solutions that perfectly match your requirements. We provide technical consultation throughout the design process, ensuring optimal performance in your specific application.
 |
 |
Quality Assurance and Manufacturing
Quality control remains central to our manufacturing process. Every component undergoes rigorous testing using advanced equipment including coordinate measuring machines and specialized gear testing systems. Our ISO9001 certification demonstrates our commitment to consistent quality standards.

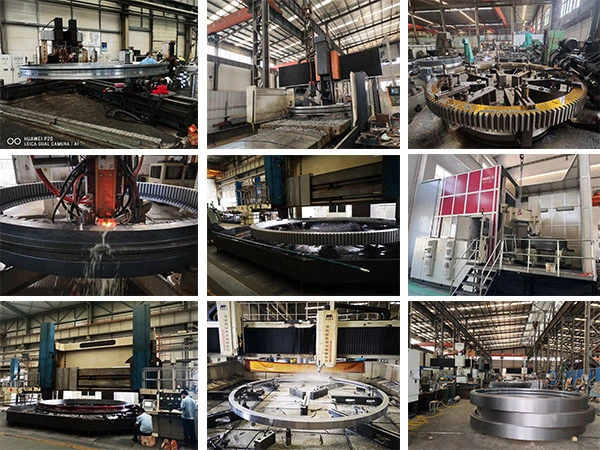

The manufacturing process utilizes state-of-the-art CNC equipment and precision machining centers. This advanced technology ensures dimensional accuracy and surface finish quality that meets international standards. Each Actuator Ring Gear is thoroughly inspected before shipment to guarantee performance reliability.
FAQ
Q: What materials are available for the ring gear?
A: We offer various high-grade bearing steels and can recommend the optimal material based on your specific application requirements and operating conditions.
Q: How long is the typical delivery time for custom orders?
A: Delivery times vary based on customization complexity. Standard modifications typically require 2-3 weeks, while extensive custom designs may take 4-6 weeks.
Q: Do you provide installation support?

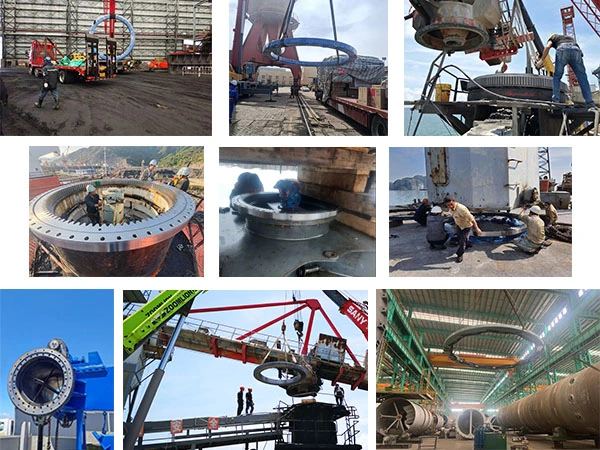

A: Yes, we offer comprehensive installation guidance and technical support. Our engineers can provide detailed instructions and troubleshooting assistance.
Q: What testing procedures do you follow?
A: We conduct dimensional inspections, material hardness testing, surface finish verification, and gear tooth profile analysis to ensure quality standards.
Q: Can you work with existing CAD drawings?
A: Absolutely. We can work from your technical drawings or provide design services if you need assistance with specifications.
 |
 |
Contact Us
With products exported to over 50 countries, we provide comprehensive support wherever your operations take you. Our technical team offers installation guidance, maintenance recommendations, and ongoing support to maximize component life and performance.
Contact us at mia@hgb-bearing.com for technical consultation and custom solutions. We're ready to help you find the perfect Actuator Ring Gear for your specific requirements.
