Internal Gear Slewing Bearing

Internal Gear Slewing Bearing: Compact Transmission Solutions for Heavy-Duty Applications

When you're looking for a reliable transmission solution that combines precision, durability, and space efficiency, our Internal Gear Slewing Bearing delivers exceptional performance. This innovative design integrates the gear ring directly within the bearing structure, creating a compact and efficient transmission system. At Luoyang Heng Guan Bearing Technology, we understand your need for dependable rotating mechanisms that can handle demanding industrial applications while maintaining optimal space utilization.

Advanced Design Engineering

Our products feature a sophisticated transmission design where the gear is positioned on the internal ring. This configuration offers significant advantages over external gear alternatives. You'll benefit from enhanced dust prevention capabilities, improved grease retention, and reduced transmission contact stress.

The internal positioning creates a protective environment for the gear mechanism. This design approach extends service life considerably when operating in challenging environments. Your equipment experiences less wear due to the lower contact stress on internal teeth.

Multiple Configuration Options

We offer four distinct structural configurations to meet your specific application requirements:

Single-row four-point contact ball bearings provide excellent axial and radial load capacity. These bearings excel in applications requiring precise positioning and moderate load handling.

Double-row reducing ball configurations deliver enhanced load distribution. You get improved stability for applications with variable loading conditions.

Three-row roller bearings offer maximum load capacity. These robust designs handle the heaviest industrial applications with exceptional reliability.

Cross-roller configurations provide superior rigidity and precision. Your precision machinery benefits from minimal deflection under load.

Technical Specifications

Our Internal Gear Slewing Bearing manufacturing capabilities cover extensive dimensional ranges:

• Inner Diameter: 300mm to 5000mm
• Outer Diameter: 400mm to 5500mm
• Height: 80mm to 400mm

We utilize premium materials for optimal performance. The base construction features 42CrMo and 50Mn special alloy steel for exceptional strength. Rolling elements are manufactured from GCr15SiMn high-purity bearing steel, ensuring smooth operation and extended life.

Our sealing systems use imported NBR or FKM materials. These advanced seals provide excellent protection against contamination while maintaining lubrication integrity.

Industry Applications

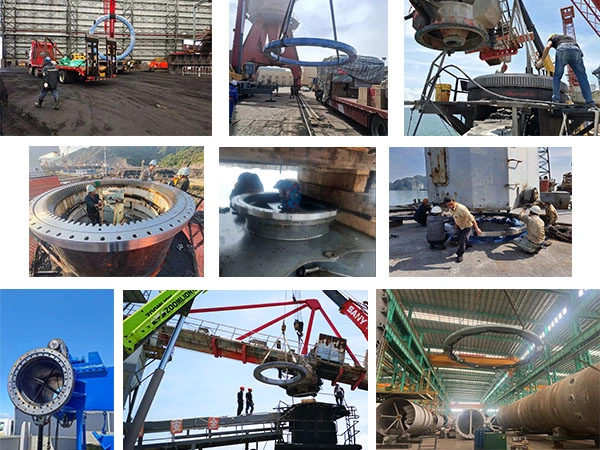

Your heavy machinery applications benefit from our versatile bearing solutions. Crawler cranes rely on our bearings for smooth slewing operations. Excavators achieve precise rotation control with our robust designs.

Rotating boring rigs depend on our orientation for nonstop operation in unforgiving conditions. Entrance cranes and holder spreaders utilize our heading for solid cargo dealing with operations.

In steel generation, our orientation bolster steelmaking converters and ceaseless casting hardware. Amusement settings believe our heading in expansive entertainment rides and organize apparatus.

Quality and Precision Standards

Our ISO9001 certification ensures consistent quality throughout production. We maintain precision grades from P0 to P4, meeting diverse application requirements. Every bearing undergoes rigorous testing using coordinate measuring machines and vibration testers.

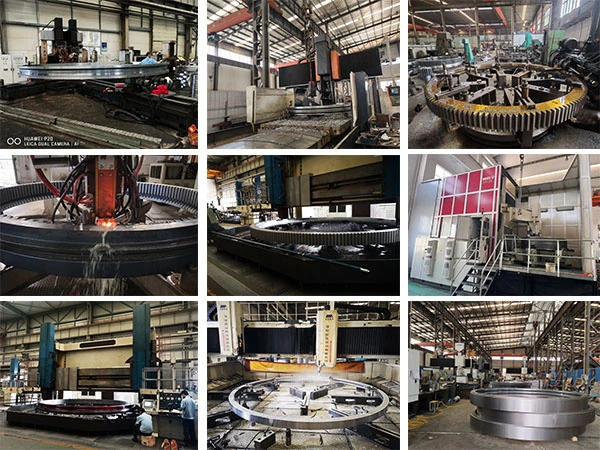

Our progressed fabricating hardware incorporates CNC vertical machines, equip shapers, and accuracy pounding machines. This innovation guarantees dimensional exactness and surface wrap up quality that meets universal benchmarks.

Custom Solutions and Support

We give comprehensive customization administrations for your one of a kind necessities. Our building group offers specialized discussion, item plan, and fabricating bolster. Whether you require extraordinary mounting gaps, custom seals, or non-standard measurements, we provide custom-made solutions.

Installation direction and specialized bolster guarantee appropriate execution. Our experienced engineers help with bearing choice and application optimization.

The compact plan of our items maximizes your gear productivity whereas conveying dependable execution over requesting mechanical applications.

FAQ

Q: What advantages do products offer over external gear designs?

A: Internal gear designs provide better dust prevention, improved grease retention, and lower transmission contact stress. This results in longer service life and reduced wear in similar operating environments.

Q: What precision grades are available for your slewing bearings?

A: We offer four precision grades: P0, P6, P5, and P4, allowing you to select the appropriate level for your application requirements.

Q: Can you provide custom solutions for special applications?

A: Yes, we specialize in customized solutions including special mounting holes, seals, and non-standard dimensions. Our engineering team provides complete design and manufacturing support.

Q: What materials do you use in bearing construction?

A: We use 42CrMo and 50Mn special alloy steel for the base material, GCr15SiMn high-purity bearing steel for rolling elements, and imported NBR or FKM seal materials.

Q: What support do you provide for international customers?

A: We offer comprehensive technical consultation, installation guidance, and after-sales support. Our products are exported to over 50 countries with full compliance to international standards.

Contact Us

Ready to discuss your Internal Gear Slewing Bearing requirements? Contact our technical team at mia@hgb-bearing.com for expert consultation and customized solutions.
