What Is a Cross Roller Bearing and How Does It Work?

Cross roller bearings are precision-engineered components that play a crucial role in various mechanical systems requiring high accuracy and load-bearing capacity. These specialized bearings are designed to handle complex loads in multiple directions simultaneously, making them invaluable in applications where precision and stability are paramount. Unlike conventional bearings, cross roller bearings feature uniquely arranged cylindrical rollers positioned at right angles to each other, forming a distinctive cross pattern. This innovative design allows for efficient distribution of both radial and axial loads, resulting in superior performance and longevity. In this comprehensive exploration, we'll delve into the intricacies of cross roller bearings, examining their structure, working principles, and the myriad benefits they offer across diverse industries. Whether you're involved in robotics, medical equipment, or precision machinery, understanding the capabilities of cross roller bearings can significantly enhance your system's performance and reliability.

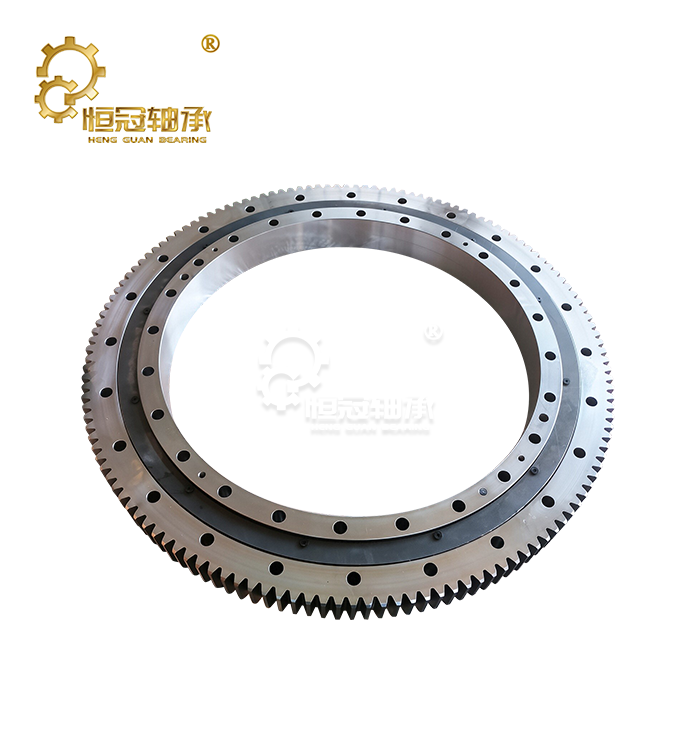

Structure & Design: What Makes a Cross Roller Bearing Unique

Innovative Roller Arrangement

The distinctive arrangement of the rollers in a cross roller bearing is what sets it apart. In this setup, cylindrical rollers are placed at right angles to each other between the inner and outer rings of the bearing. The bearing works so well because of this cross-pattern arrangement. The rollers are usually manufactured of GCr15 bearing steel, which is quite strong and doesn't wear out easily. This setup lets the cross roller bearing manage complicated loads coming from more than one direction at the same time. The cylindrical rollers in a cross roller bearing make line contacts with the raceways, which makes the bearing much stronger and able to hold more weight than ball bearings, which only make point contacts. This design feature is very important for things like robotic arms or medical imaging equipment that need to move very precisely and hold a lot of weight.

Raceway Design and Material Selection

The raceways of a cross roller bearing are another critical component that contributes to its unique capabilities. Typically, the inner and outer rings of the bearing are made from high-strength materials like 50Mn or 42CrMo alloy steel. These materials are chosen for their excellent hardness and dimensional stability, which are essential for maintaining precision over long periods of use. The raceways are precision-ground to achieve a smooth surface finish, often with a V-shaped profile. This V-shaped raceway design is crucial as it helps to guide the rollers and distribute loads evenly across the bearing surface. The optimized geometry of the raceways, combined with the cross-roller arrangement, allows the cross roller bearing to achieve superior rigidity and accuracy compared to conventional bearings. This design also contributes to the bearing's ability to handle both radial and axial loads efficiently, making it ideal for applications that require multi-directional load-bearing capabilities.

Sealing and Lubrication Systems

Cross roller bearings have superior sealing and lubrication systems to make sure they work well and last a long time. The seals are usually composed of NBR rubber that doesn't break down in oil. They keep dirt and other impurities out of the internal parts and hold lubrication. These seals are very important for making the bearing last longer because they keep dust, moisture, and other damaging elements from getting inside. The lubrication system of a cross roller bearing is meticulously designed to work as well as possible. Many designs include built-in lubrication reservoirs or unique grease pockets that make sure the rolling parts are always lubricated. This is especially crucial for bearings that start and stop a lot or work at different speeds. Cross roller bearings can stay precise and run smoothly even in tough conditions because they are well-sealed and well-lubricated. This makes them useful in many sectors, including aerospace and semiconductor production.

Working Principle: How a Cross Roller Bearing Handles Loads Efficiently

Load Distribution Mechanics

The unusual design of a cross roller bearing makes it very good at carrying loads. When a load is put on, it is spread out equally over the alternating rollers. This cross-arrangement lets the bearing take both radial and axial loads at the same time, which is different from many other types of bearings. The cylindrical rollers create line contact with the raceways, which makes the load-bearing surface area much more than in ball bearings, where the contacts are points. This bigger contact area means it can hold more weight and is stiffer. Each roller bears the load when the bearing revolves, which makes sure that wear is even and the bearing lasts longer. The V-shaped raceway design helps with load distribution even more by keeping the rollers in line and guiding them as the load changes. Cross roller bearings are great for industrial robots and heavy machinery since they can carry huge loads while still being very precise. This is because they have an effective load distribution system.

Friction Reduction and Smooth Operation

Cross roller bearings excel in providing smooth operation with minimal friction, a characteristic that is vital in precision applications. The design of these bearings inherently reduces friction through several mechanisms. Firstly, the line contact between the rollers and raceways distributes the load over a larger area, reducing the pressure at any single point and consequently lowering friction. Secondly, the high-quality materials used in manufacturing these bearings, such as GCr15 bearing steel for rollers, have excellent surface finish properties that contribute to smoother rolling. The precision-ground raceways further enhance this smooth operation. Additionally, the cross-arrangement of rollers allows for better lubrication retention between the rolling elements and raceways. This consistent lubrication film helps in reducing metal-to-metal contact, thereby minimizing friction and wear. The result is a bearing that operates with exceptional smoothness, even under high loads and at varying speeds, making cross roller bearings particularly suitable for applications requiring precise movements, such as in medical equipment or optical instruments.

Thermal Management and Stability

For cross roller bearings to work well, they need to be able to control heat well, especially in high-precision situations. These bearings are more thermally stable than many other types of bearings because of how they are made. Because the rollers and raceways touch in a line, the heat is spread more evenly throughout the bearing surface. This consistent heat distribution stops hot patches from forming, which might cause thermal expansion and misalignment. Also, the materials used in cross roller bearings, including alloy steels for rings and high-quality bearing steel for rollers, are chosen because they stay stable at high temperatures. The bearing stays accurate even when the temperature changes since these materials don't expand much when they get hot. The efficient lubricating system also helps with thermal management by getting rid of heat quickly. Cross roller bearings offer the thermal stability needed to keep performance and accuracy consistent over time in situations where temperature control is very important, such semiconductor production equipment or precision measurement instruments.

Applications & Benefits: Why Choose a Cross Roller Bearing for Precision Systems

Industrial Robotics and Automation

In the realm of industrial robotics and automation, cross roller bearings have become an indispensable component. These bearings are particularly well-suited for robotic arm joints and rotary tables in CNC machines due to their ability to handle complex, multi-directional loads while maintaining high precision. The cross-roller design allows for smooth, accurate movements essential in pick-and-place operations, welding robots, and assembly line automation. The high load capacity of cross roller bearings enables robots to handle heavier payloads without compromising on accuracy, a crucial factor in increasing productivity in manufacturing settings. Moreover, the compact design of these bearings allows for the creation of more streamlined and efficient robotic systems. In automated guided vehicles (AGVs) used in warehouses and factories, cross roller bearings in the wheel assemblies provide the necessary stability and precision for navigating tight spaces and ensuring accurate positioning. The longevity and low maintenance requirements of cross roller bearings also contribute to reduced downtime in automated systems, enhancing overall operational efficiency in industrial settings.

Medical and Imaging Equipment

The medical industry heavily relies on cross roller bearings for various critical applications, particularly in imaging and diagnostic equipment. In CT scanners and MRI machines, these bearings play a vital role in the rotating gantry systems. The high precision and smooth operation of cross roller bearings ensure that the imaging equipment can rotate smoothly and consistently, producing clear and accurate images. The ability of these bearings to handle both radial and axial loads is crucial in maintaining the stability of heavy imaging components as they rotate around the patient. In surgical robotics, cross roller bearings enable precise movements required for minimally invasive procedures. Their compact design allows for the creation of smaller, more maneuverable surgical instruments. Dental equipment, such as panoramic X-ray machines, also benefits from the high accuracy and stability provided by cross roller bearings. The low friction characteristics of these bearings contribute to the quiet operation of medical devices, enhancing patient comfort during procedures.

Aerospace and Defense Applications

In the aerospace and defense sectors, cross roller bearings find critical applications due to their exceptional performance under extreme conditions. These bearings are used in various aircraft components, including flight control systems, landing gear assemblies, and engine gimbals. The ability of cross roller bearings to handle high loads in multiple directions is particularly valuable in aircraft applications where components are subjected to complex forces during flight maneuvers and landing. In satellite systems and space telescopes, cross roller bearings are used in pointing and tracking mechanisms, where ultra-high precision and stability are essential. The thermal stability of these bearings is crucial in space applications, where they must perform reliably in extreme temperature variations.

Conclusion

Cross roller bearings represent a pinnacle of precision engineering, offering unparalleled performance in applications demanding high accuracy, load capacity, and reliability. Their unique design, combining innovative roller arrangement with advanced materials and manufacturing techniques, makes them indispensable in industries ranging from robotics to aerospace. As technology continues to advance, the role of cross roller bearings in enabling more precise, efficient, and compact machinery is likely to grow. For businesses and engineers seeking to push the boundaries of what's possible in their respective fields, incorporating cross roller bearings can be a game-changing decision, offering a blend of precision, durability, and versatility that few other components can match.

For more information on how cross roller bearings can enhance your applications, contact Luoyang Heng Guan Bearing Technology Co., Ltd. Our team of experts is ready to assist you in finding the perfect bearing solution for your needs. Reach out to us at mia@hgb-bearing.com to discuss your specific requirements and discover how our high-quality bearings can drive your projects forward.

FAQ

In which industries are cross roller bearings commonly used?

Cross roller bearings are widely used in robotics, medical equipment, aerospace, defense, and precision machinery industries.

How do cross roller bearings handle both radial and axial loads?

The cross-arranged cylindrical rollers allow these bearings to efficiently distribute both radial and axial loads simultaneously.

What materials are typically used in manufacturing cross roller bearings?

High-strength alloy steels like 50Mn or 42CrMo are used for rings, while GCr15 bearing steel is common for rollers.

How do cross roller bearings contribute to thermal stability in precision applications?

Their design allows for even heat distribution and uses materials with low thermal expansion, maintaining accuracy in varying temperatures.
