Crossed Roller Bearing
2. Product Structure: V-shaped raceways and cylindrical rollers work in perfect harmony for optimal load distribution.
3. Size Range: Bore Diameter: From approximately 50 mm to over 2000 mm.
Cross-Section Height: From 20 mm to 100 mm.
4. Material: Rings: High-strength 50Mn or 42CrMo alloy steel.
Rolling Elements: High-precision, high-hardness GCr15 bearing steel balls.
Seal Strips: Oil-resistant, wear-resistant nitrile rubber (NBR).
5. Applications: Industrial robots, medical equipment, aerospace and military applications, precision instruments, and optical equipment.
Crossed Roller Bearing - Precision Engineering Solution for Your Applications
When you need exceptional precision and reliability in your mechanical systems, a Crossed Roller Bearing delivers unmatched performance. These progressed heading include a special cross-roller course of action that accomplishes idealize multi-dimensional stack adjust inside a compact space. At Luoyang Heng Guan Bearing Innovation Co., Ltd., we specialize in fabricating high-precision orientation that meet the requesting necessities of cutting edge designing applications. Our mastery ranges over 30 a long time in the bearing industry, making us your trusted accomplice for accuracy solutions.
What Makes Our Crossed Roller Bearings Special?
Our items utilize V-shaped raceways and round and hollow rollers working in culminate agreement. This inventive plan permits the rollers to be situated at 90-degree points to each other, making an X-pattern course of action. You get predominant stack conveyance and remarkable inflexibility that conventional heading basically cannot match.
The part external ring plan, held together by three holding rings, makes establishment clear. You can effortlessly settle the bearing external rings to adjoining development utilizing clamping rings. This dispenses with the complexity regularly related with exactness bearing establishments.
 |
 |
Technical Specifications You Can Count On
Size Range:
- Bore Diameter: 50mm to over 2000mm
- Cross-Section Height: 20mm to 100mm
- Precision grades: P0, P6, P5, and P4
Premium Materials:
- Rings: High-strength 50Mn or 42CrMo alloy steel
- Rolling Elements: High-precision GCr15 bearing steel
- Seal Strips: Oil-resistant, wear-resistant nitrile rubber (NBR)
Our manufacturing process follows ISO9001 certification standards. Every bearing undergoes rigorous testing using coordinate measuring machines, vibration testers, and life testing equipment.
Load Capacity and Performance Benefits
With our Crossed Roller Bearing, you can handle multiple load types simultaneously. These bearings support:
- Radial forces in all directions
- Axial forces from both directions
- Tilting moment loads
- Combined load conditions
This versatility means you can often replace two-bearing designs with a single bearing position. You save space, reduce complexity, and lower maintenance requirements.
Applications Across Industries
Your precision requirements find perfect solutions in our product range:
Industrial Automation:
- Robotic joints and rotation systems
- CNC machine tool spindles
- Automated assembly equipment
Medical and Scientific Equipment:
- CT scanners and MRI machines
- Precision optical instruments
- Laboratory automation systems
Aerospace and Defense:
- Radar antenna systems
- Satellite positioning mechanisms
- Military vehicle turrets
Why Choose Heng Guan Bearing?
Our commitment to excellence extends beyond manufacturing. You receive comprehensive support throughout your project:
Quality Assurance:
- Full traceability from raw materials to finished products
- RoHS compliance and international standards adherence
- Products exported to over 50 countries including Germany, United States, and Australia
Custom Solutions:
- Personalized non-standard customization
- Technical consultation and product design
- Installation guidance and old product mapping
Professional Service:
- Team of over 50 R&D specialists
- Fast delivery with ample inventory
- Comprehensive after-sales support
 |
 |
Manufacturing Excellence

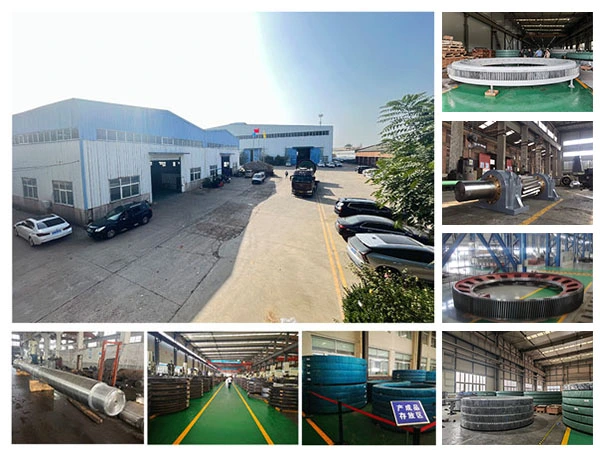

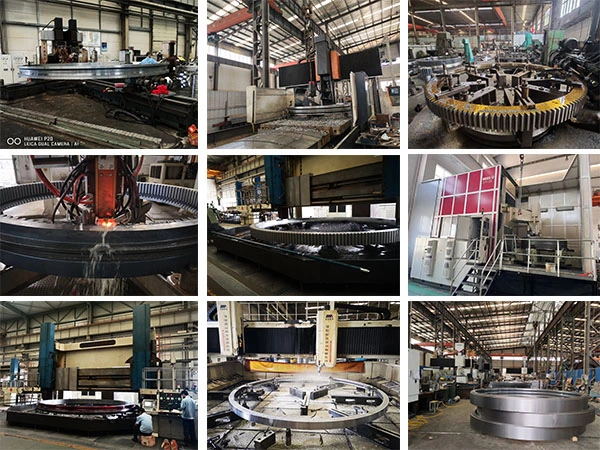

Our Luoyang facility houses advanced equipment including CNC vertical lathes, CNC quenching machines, and precision grinding equipment. This technology ensures every Crossed Roller Bearing meets the highest quality standards.
We maintain strict quality control at every production stage. Your bearings undergo comprehensive testing to verify rotational accuracy, noise levels, and load capacity before shipment.
FAQ
Q: What is the main advantage of the products over traditional bearings?
A: The cross-roller arrangement allows these bearings to handle radial, axial, and moment loads simultaneously in a single bearing position, eliminating the need for multiple bearing arrangements.
Q: Can you customize bearings for specific applications?
A: Yes, we provide personalized non-standard customization based on your requirements. Our R&D team can work with your specifications to create the perfect solution.
Q: What precision grades do you offer?
A: We manufacture bearings in four precision grades: P0, P6, P5, and P4, covering applications from standard industrial use to ultra-high precision requirements.
Q: How long is your typical delivery time?
A: We maintain ample inventory of standard products for fast delivery. Custom orders depend on specifications, but our efficient production process ensures competitive lead times.
Q: Do your bearings comply with international standards?
A: Yes, our products strictly adhere to DIN, ISO, and GB international standards, and we maintain ISO9001 certification with RoHS compliance.
 |
 |
Contact Us
Ready to experience the difference that premium crossed roller bearings make in your applications? Our designing group stands prepared to offer assistance you select the idealize bearing arrangement for your particular requirements.
Contact us today at mia@hgb-bearing.comfor technical consultation, custom quotes, or to discuss your project needs. With Heng Guan Bearing, you get more than just a bearing – you get a partnership built on precision, quality, and reliability.
